Overview
AcousTech™ Wall & Ceiling Panels are decorative, high-performance and highly customizable acoustical wall panels that are designed for both wall and ceiling applications. These panels are an extremely effective treatment for the control of excessive reverberation, noise and echoes that interfere with the intended use of your space. AcousTech™ panels are constructed from 6-7 PCF fiberglass board and then wrapped with a decorative fabric facing to complement your overall design and color palette. These sound panels for walls provide the highest sound absorption efficiency and performance.
applications

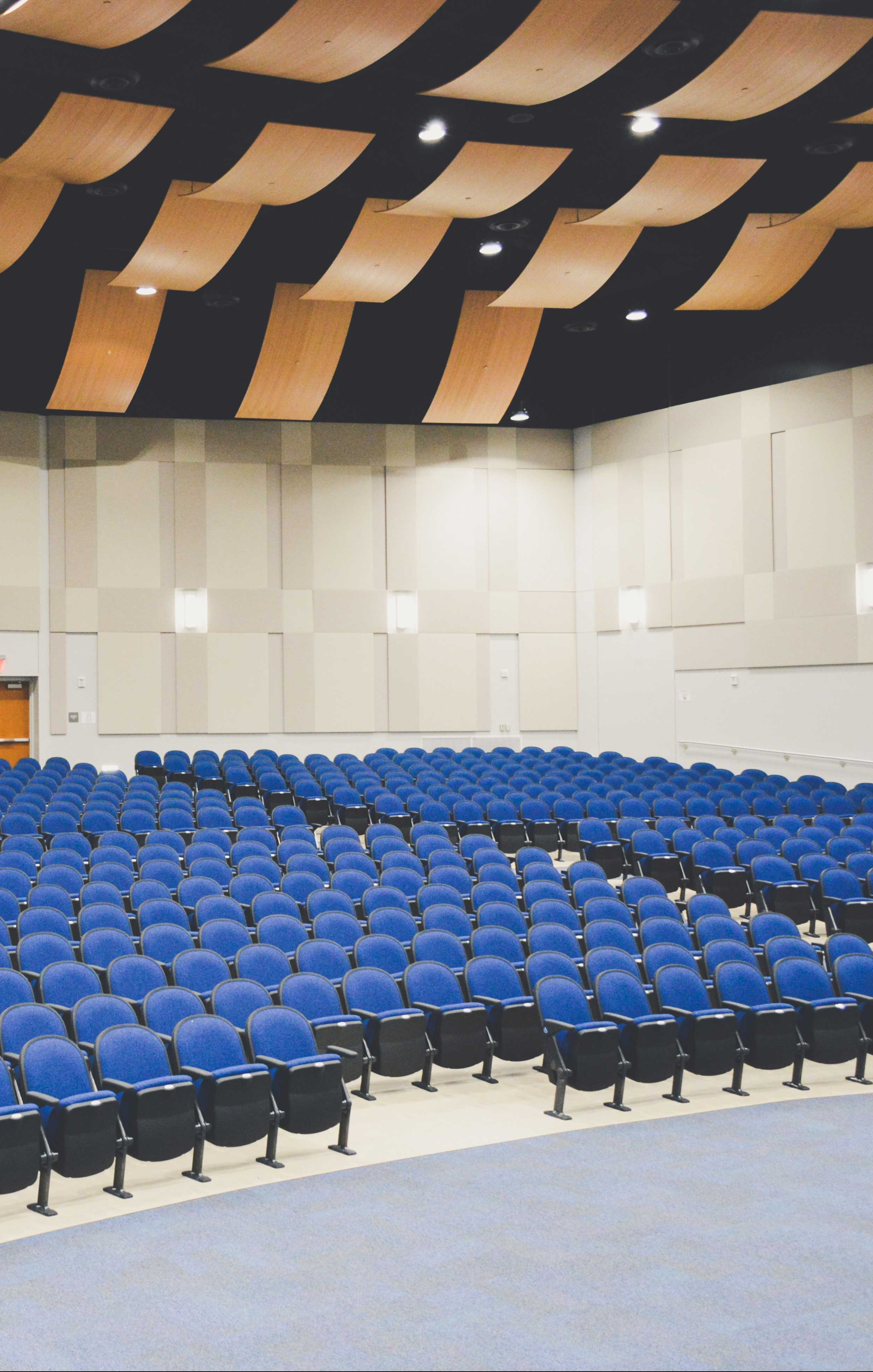

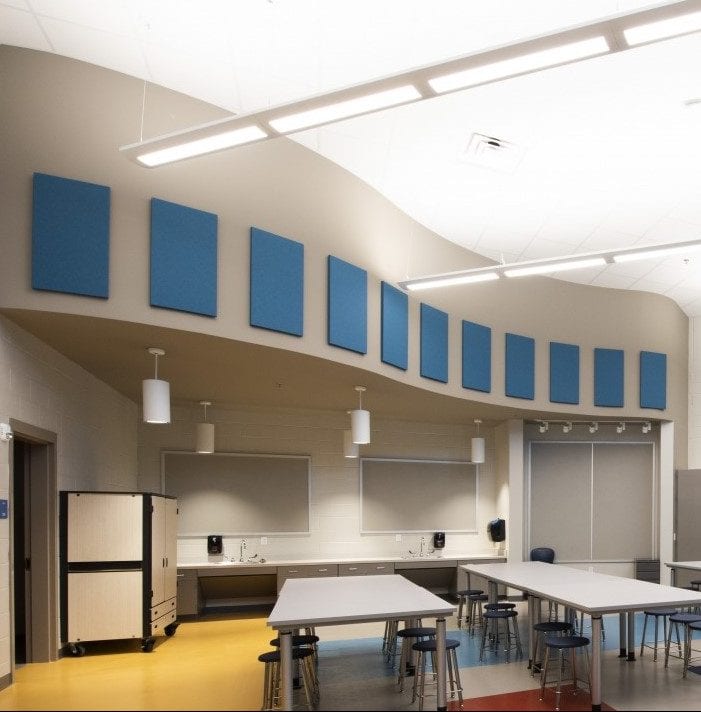

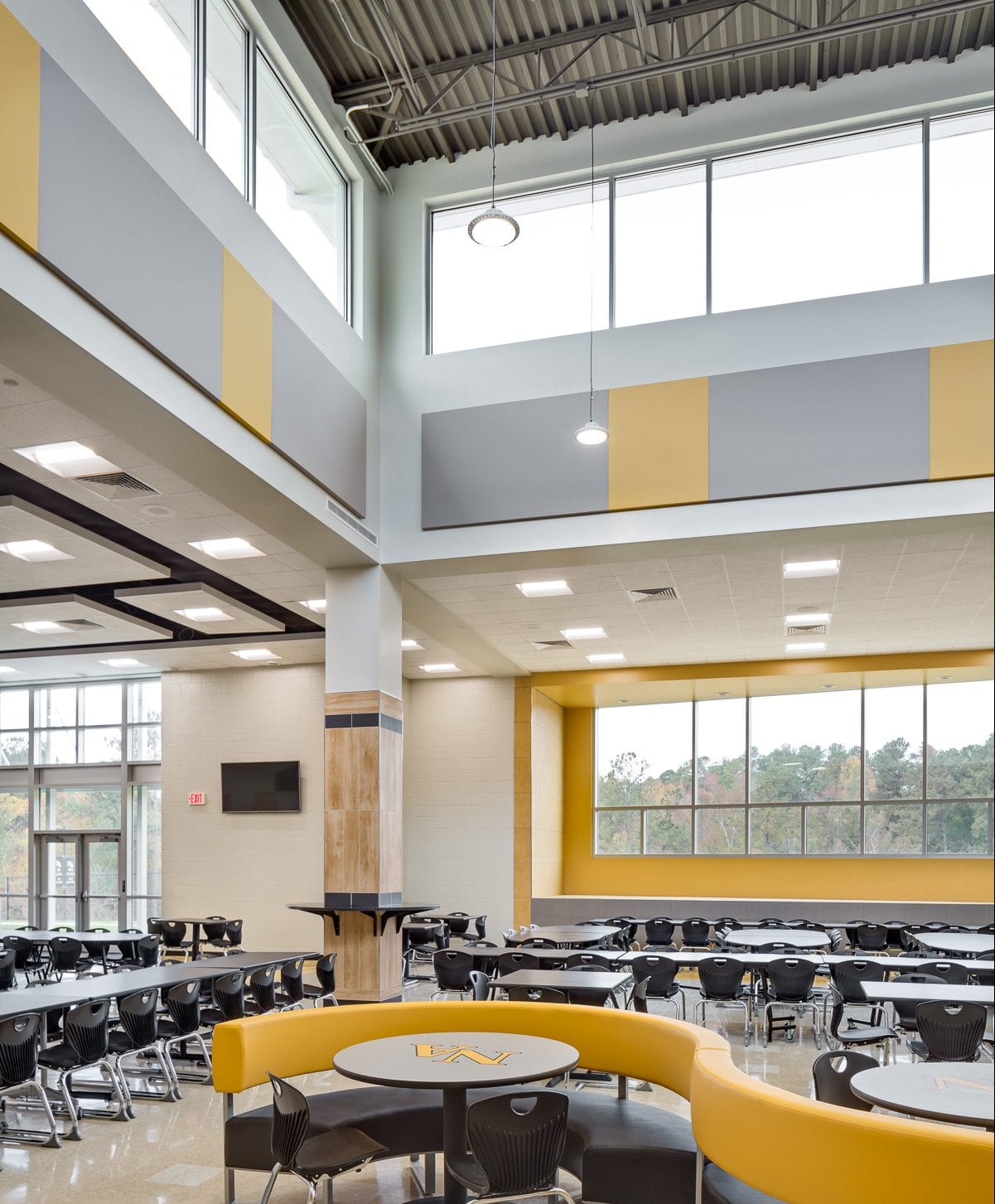

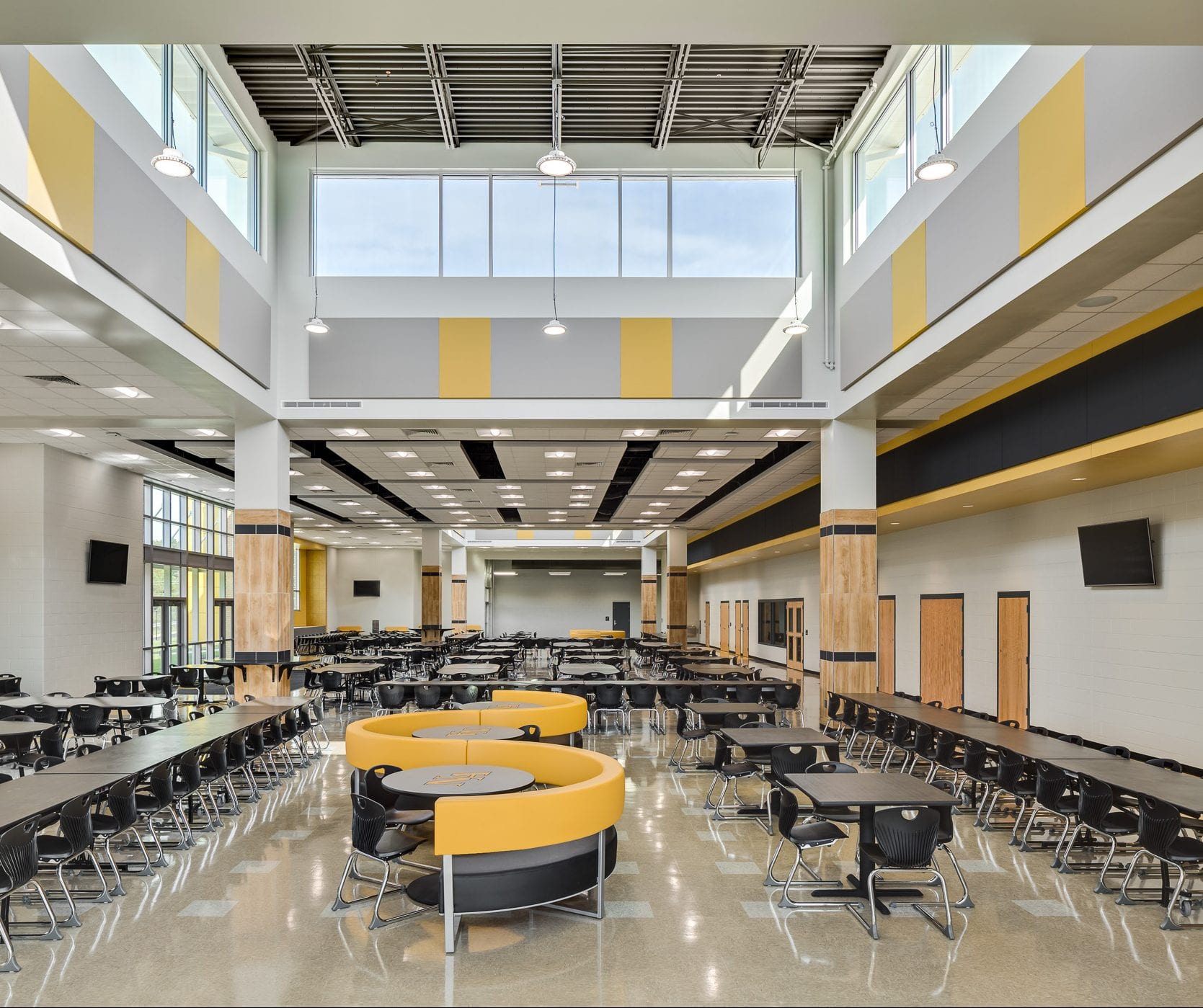

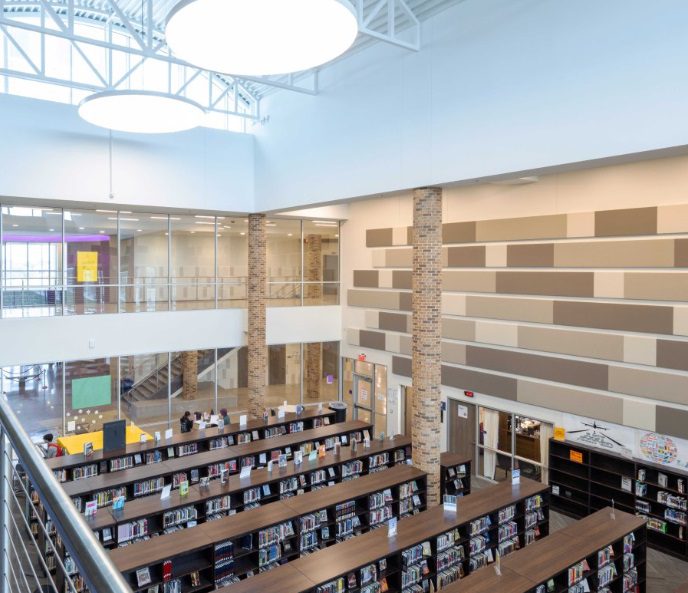

AcousTech™ Wall & Ceiling Panels are the ideal decorative acoustical wall panels and ceiling panels for areas that require sound & noise control. Some applications of these sound panels for walls include:

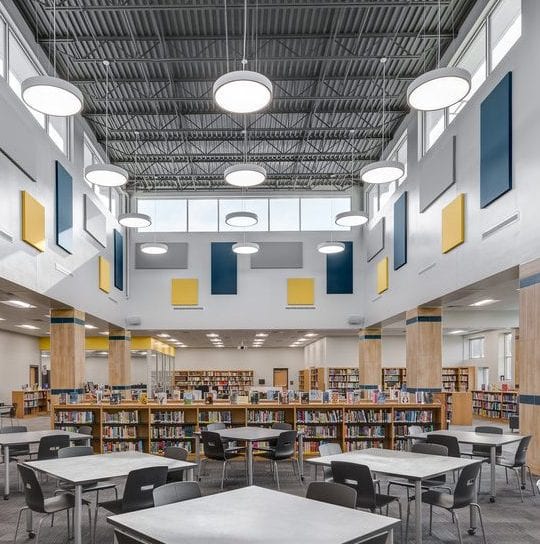

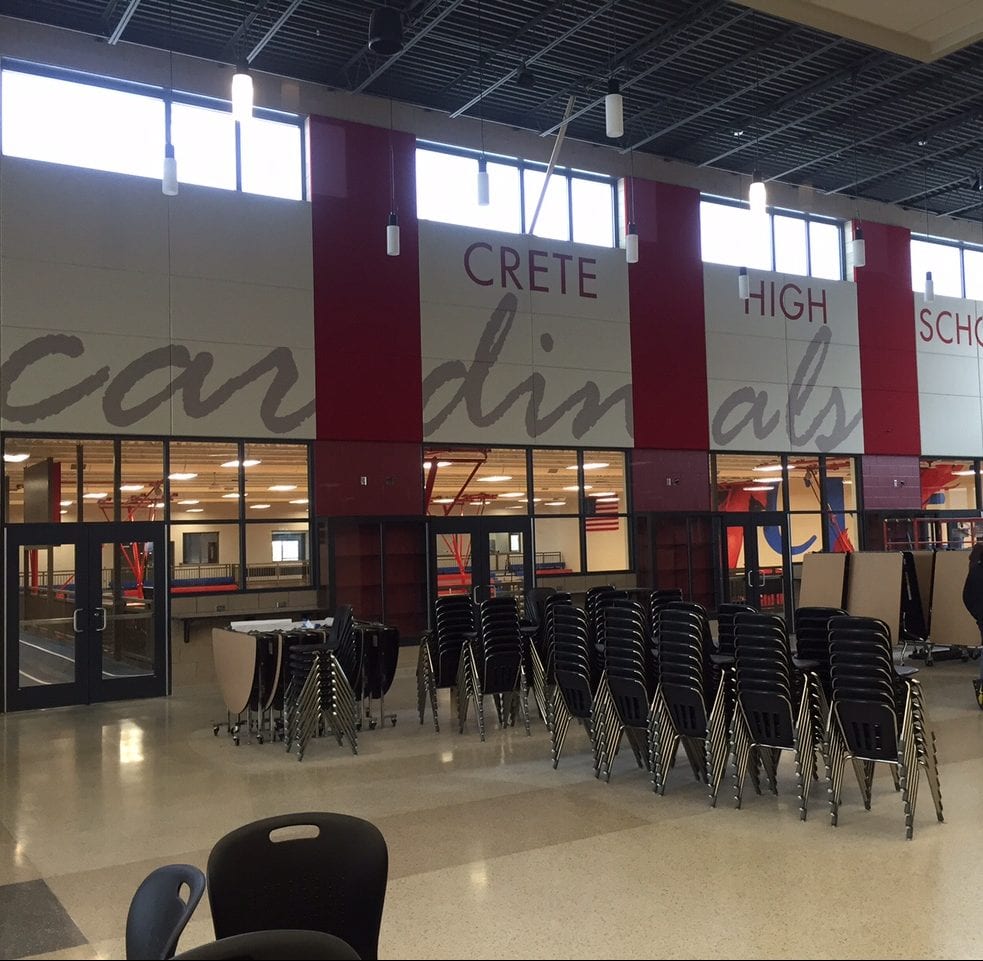

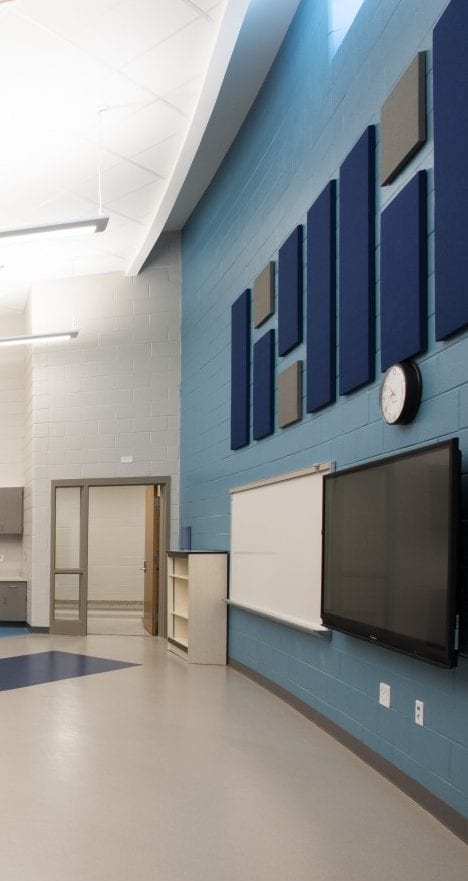

- Schools/Classrooms

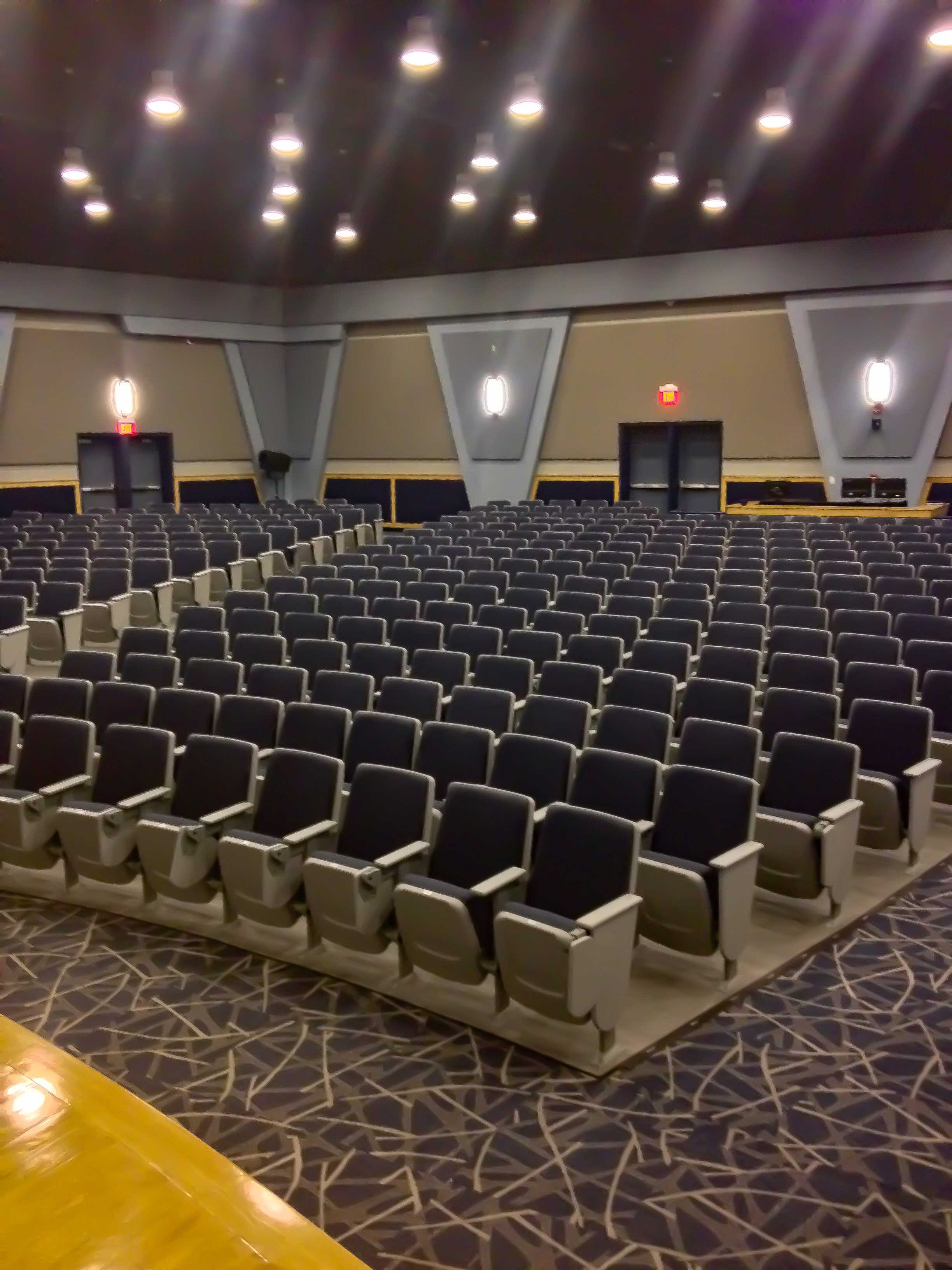

- Auditoriums

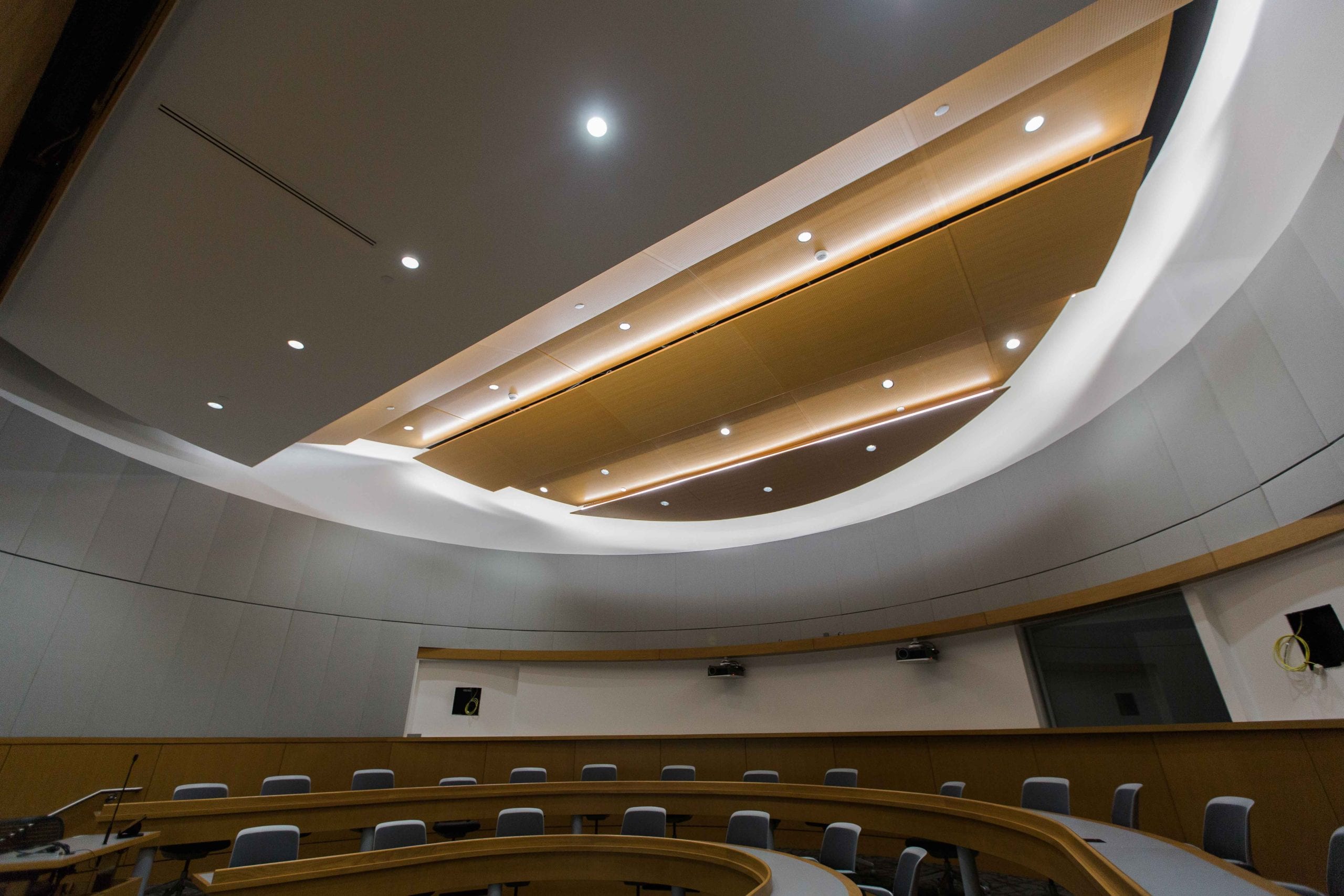

- Conference Areas
- Churches
- Offices
- Lobbies

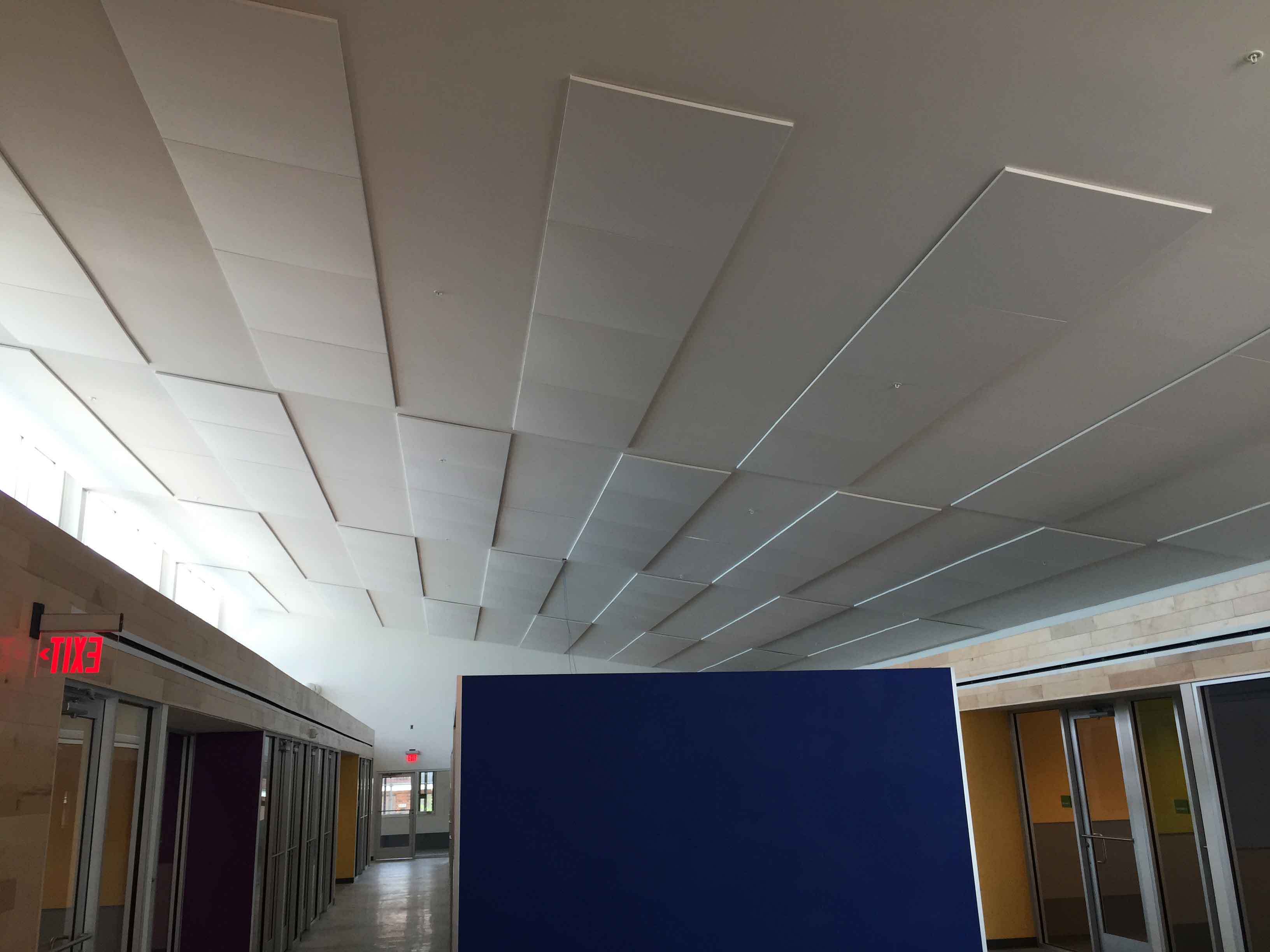

- Hallways
- Healthcare
- Conference Rooms

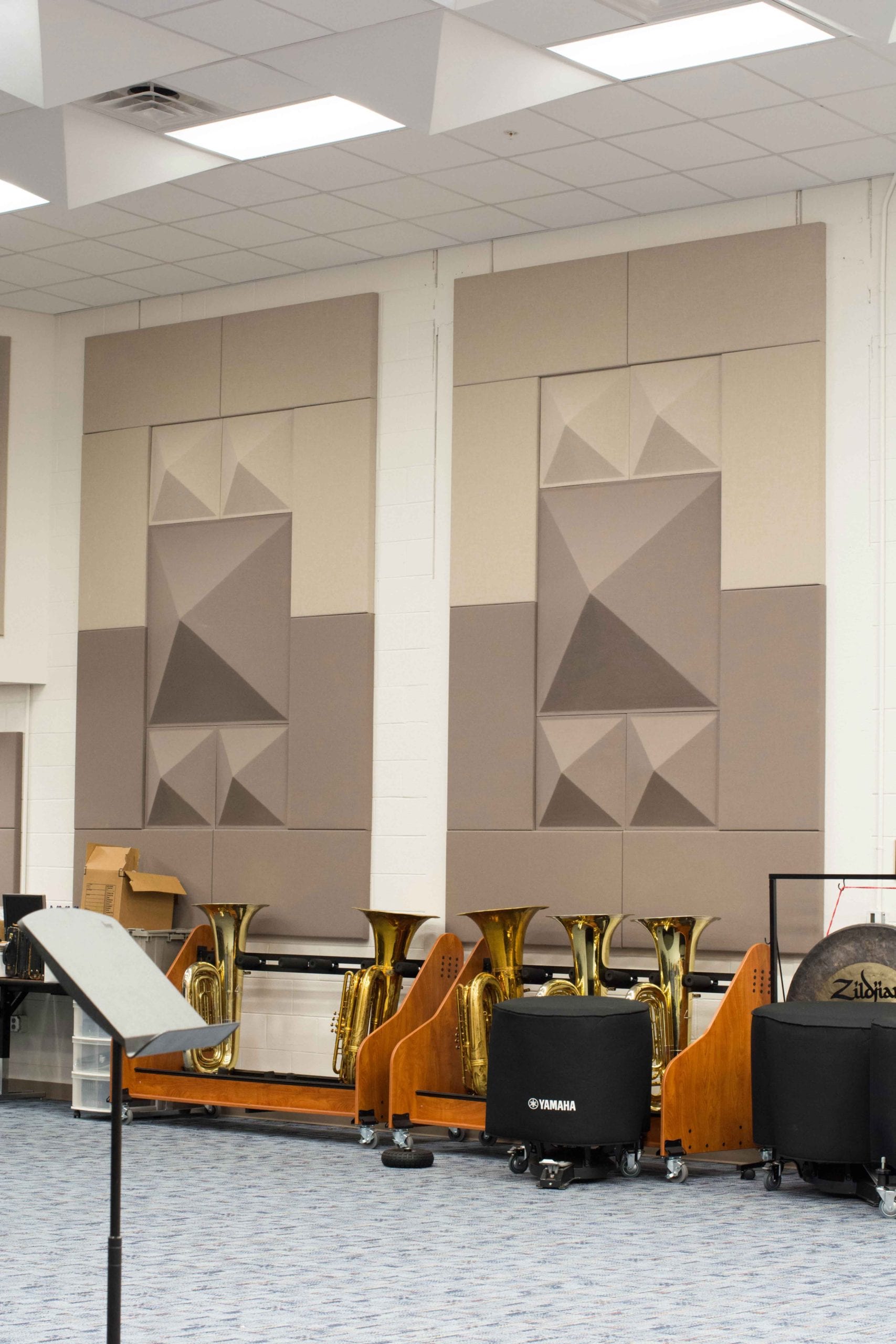

- Studios
- Restaurants
- Core: 6-7 PCF Fiberglass
- Thickness: ¾”, 1″, 1½”, 2″, 3″, 4″
- Sizes: Any Size Up to 48″ x 120″
- Special Sizes & Shapes: Available Upon Request
- Edge Profile: Square, Bevel, Radius, Miter, Others Available Upon Request
- Fabric: Decorative Fabric Facings, Designer Selection or C.O.M.
- Standard: Guilford FR701-2100 Series
- Premium: Guilford Anchorage 2335
- Felt: AcousTech™ Felt or Guilford Felt 9900
- Fasteners: Z-Clip, Z-Bar, Impaling, Hook & Loop
- (See AcousTech™ Ceiling Clouds for Ceiling Suspension Application)
- Dimensional Tolerance: +/- 1/16″ (.0625″)
- Fire Performance: Class 1/A, UL 723 / ASTM E84
- Design Flexibility with Standard and Custom Sizes & Shapes Available
- Highest Sound Absorption Efficiency & Performance
- Lightweight Systems for Ceiling & Wall Installations
- Durable and Resistant to Damage
- Wide Selection of Standard Colors, Prints, Textures & Finishes
- Decorative Fabric Facings from Guilford of Maine as well as Designer Selections from Maharam, Carnegie, DesignTex, Knoll, & More!
- AcousTech™ Felt & Guilford Felt Fabrics Available
- Custom-Printed Digital Imaging Available
- Easy to Install with Fully-Concealed Mounting Hardware Included
- LEED Credit Eligibility With Installation of These Products
- Indoor Air Quality (IAQ) & Low VOC Meets GREENGUARD Children & Schools Certification and California Title 24
- Low VOC emissions per CDPH Standard Method
Acoustical Data
| Frequency (Hz) | 125 | 250 | 500 | 1K | 2K | 4K | NRC |
|---|---|---|---|---|---|---|---|
|
ATP .75 - 3/4" Panel |
0.08 |
0.26 |
0.71 |
0.98 |
1.01 |
1.03 |
0.75 |
|
ATP 1.0 - 1" Panel |
0.07 |
0.45 |
0.95 |
1.07 |
1.07 |
1.18 |
.90 |
|
ATP 1.5 - 1-1/2" Panel |
0.29 |
0.73 |
1.13 |
1.16 |
1.10 |
1.18 |
1.05 |
|
ATP 2.0 - 2" Panel |
0.38 |
0.96 |
1.16 |
1.16 |
1.11 |
1.28 |
1.10 |
|
ATP 3.0 - 3" Panel |
0.52 |
1.16 |
1.26 |
1.22 |
1.14 |
1.05 |
1.20 |
|
ATP 4.0 - 4" Panel |
0.87 |
1.19 |
1.23 |
1.21 |
1.15 |
1.05 |
1.20 |
