Acoustishell™ Curvilinear Diffuser-Reflector


AcoustiShell™ Curvilinear Diffuser-Reflectors are constructed of FRP composites, are extremely rigid for low resonance and are more durable than gypsum products. Internal dampening is standard on all FRP AcoustiShell™ with AVL’s exclusive GeoMatrix core, which prevents unwanted ringing and resonances that color sound and tone. Different shapes and curvatures are available to provide various elements of diffusion and longitudinal back-scattering of sound energy as well as opportunities for various aesthetic designs. Canopied arrays and grouping by the installer may allow the acoustical consultant to design and achieve non-periodic responses and grouped sequencing.


AcoustiShell™ Curvilinear Diffuser-Reflectors are the ideal wall & ceiling treatment where sound must be reflected without absorption or conversion of energy. Some applications include:

  • Auditoriums
  • Performing Arts Centers
  • Worship Space
  • Sanctuaries
  • Schools
Technical Features

  • Core & Thickness: FRP Part with GeoMatrix Core and 1½” Perimeter Edge
  • Radius: Standard 15’0″ and 20’0″ With Custom Radii Available
  • Sizes: Standardly 4’x8′ With Custom Sizes Available Up To 4’x10′
  • Special Sizes & Shapes: Available Upon Request
  • Finish: Standard White or Custom Color Gel Coat
    • Decorative Fabric Facings Available Upon Request
  • Fasteners: Factory Installed Eyebolt Attachment Points for Ceiling Suspension
    • Wall Mount with Wood Cleat Installation (By Others)
  • Weight: 2-2.5 lbs/SF, Typical
  • STC Rating: STC 50
  • Sound Absorption: Optional AcousTech™ or TheaterBlack™ Backing
  • Dimensional Tolerance:  +/- ¼”
  • Fire Performance: Class 1/A, UL 723 / ASTM E84; Class B, C Ratings Optional

Key Features

  • Standard White Gel Coat Finish
  • Custom Color Gel Coat Options to Match Your Color Palette & Design
  • Factory, Pre-Formed Shapes for Consistent & Uniform Appearance –     NO On-Site Bowing Required! Ready to Install Upon Receipt
  • Various Shapes & Curvatures Available
  • Can Be Installed Individually or as an Array or Canopy
  • Wide Selection of Standard Colors, Prints, Textures & Finishes
  • Standard and Custom Sizes & Shapes Available
  • Easy to Install with Fully-Concealed Mounting Hardware Included
  • Sound Absorption with Optional AcousTech™ or TheaterBlack™ Backing

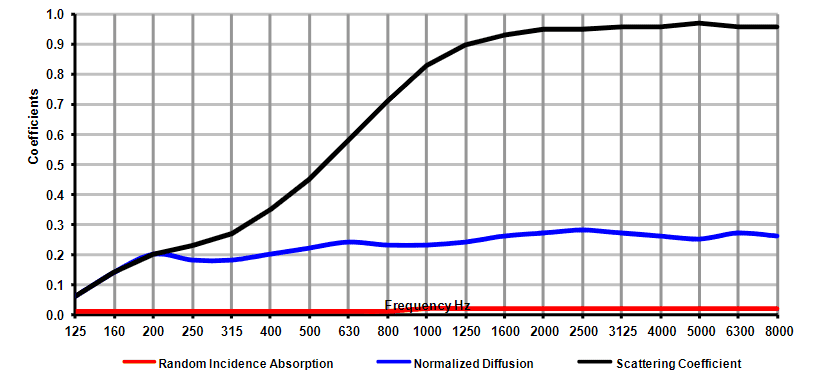

Acoustical Data
