Overview
AcousTech Endure™ “super high impact” acoustical panels is a decorative, high-performance and high abuse-resistant sound absorption product for interior spaces. AcousTech Endure™ is constructed from 6-7 PCF fiberglass board with an acoustically transparent 1/16″ perforated copolymer facing adhered to the panel face to resist damage. Endure™ panels are wrapped with a decorative fabric facing to complement your overall design and color palette, all while providing the highest sound absorption efficiency and performance for your interior space.
applications
AcousTech Endure™ panels are the ideal decorative wall & ceiling treatment for “super high impact” areas that require sound & noise control. Some applications include:

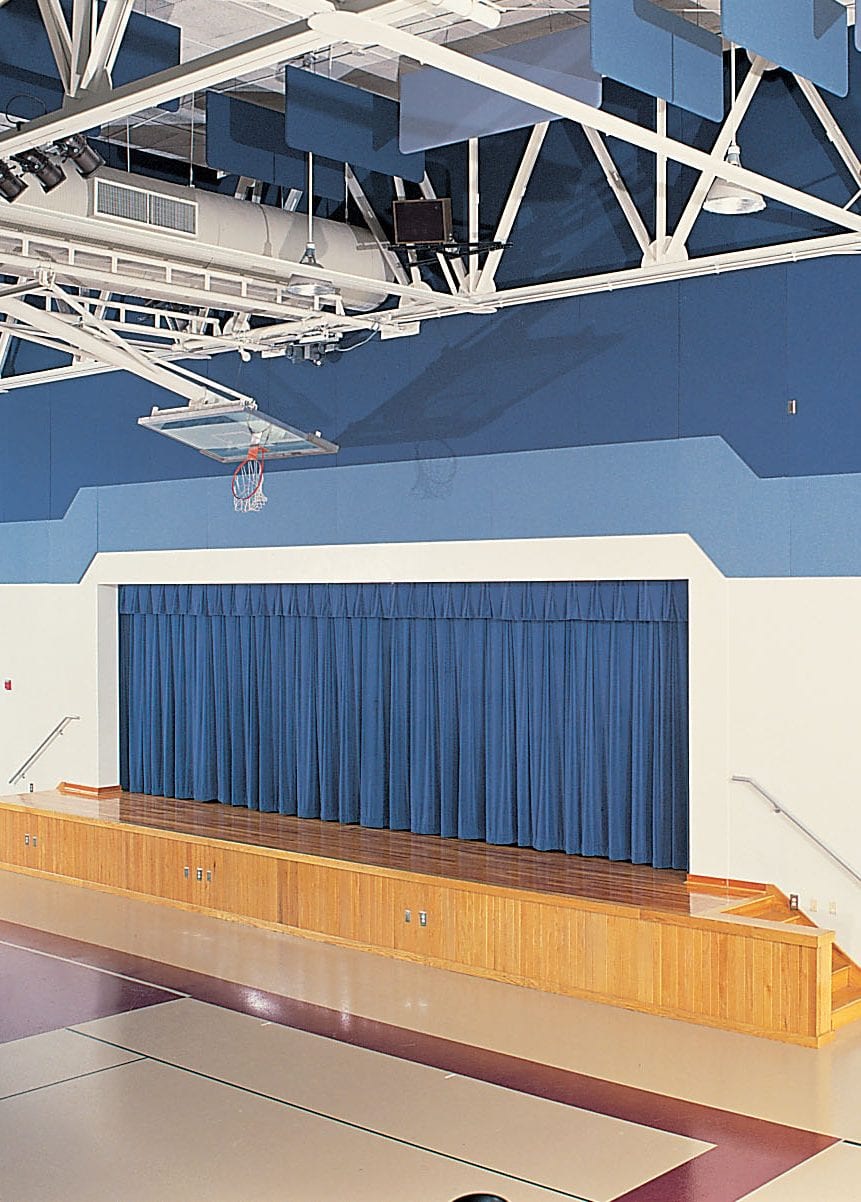

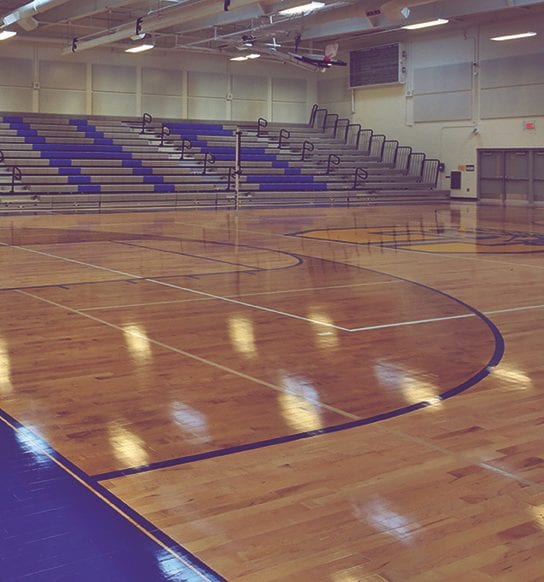

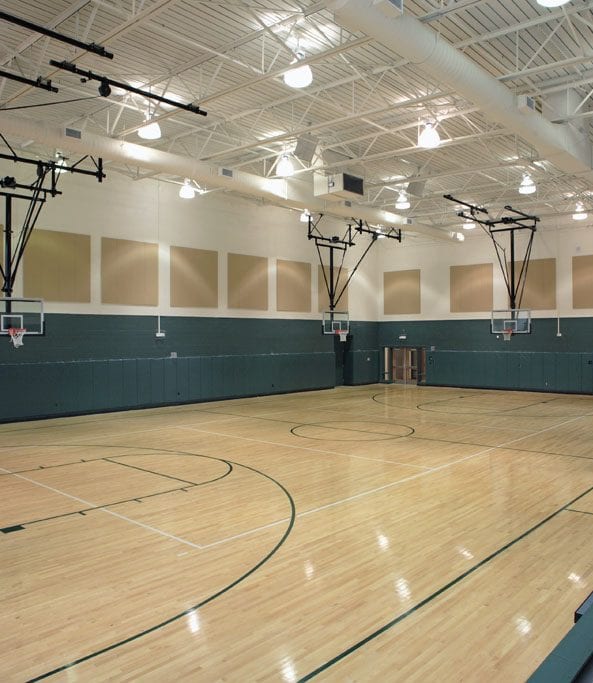

- Gymnasiums
- Schools/Classfrooms
- Rec Centers
- Lobbies
- Hallways
- Healthcare
- Conference Areas
Technical Features
- Core: 6-7 PCF Fiberglass
- Core Facing: 1/16″ Impact Resistant & Acoustically Transparent Perforated Copolymer Sheet
- Thickness: 1-1/16″, 1-9/16″, 2-1/16″, 3-1/16″
- Sizes: Any Size Up to 48″ x 120″
- Special Sizes & Shapes: Available Upon Request
- Edge Profile: Square, Bevel
- Fabric: Decorative Fabric Facings, Designer Selection or C.O.M.
- Standard: Guilford FR701-2100 Series
- Premium: Guilford Anchorage 2335
- Felt: AcousTech™ Felt or Guilford Felt 9900
- Fasteners: Z-Clip, Z-Bar, Impaling, Hook & Loop
- Dimensional Tolerance: +/- 1/16″ (.0625″)
- Fire Performance: Class 1/A, UL 723 / ASTM E84
Key Features
- “Super High Impact” Panel for Highly Abused Spaces
- Decorative Fabric Facings from Guilford of Maine as well as Designer Selections from Maharam, Carnegie, DesignTex, Knoll, & More!
- AcousTech™ Felt & Guilford Felt Fabrics Available
- Custom-Printed Digital Imaging Available
- Standard and Custom Sizes & Shapes Available
- Easy to Install with Fully-Concealed Mounting Hardware Included
- LEED Credit Eligibility with Installation of These Products
- Indoor Air Quality (IAQ) & Low VOC Meets GREENGUARD Children & Schools Certification and California Title 24
- Low VOC emissions per CDPH Standard Method
Acoustical Data
| Frequency (Hz) | 125 | 250 | 500 | 1K | 2K | 4K | NRC |
|---|---|---|---|---|---|---|---|
|
ATPE 1.1 - 1-1/16" Panel |
0.13 |
0.31 |
0.80 |
1.05 |
1.15 |
1.45 |
0.90 |
|
ATPE 1.6 - 1-9/16" Panel |
0.36 |
0.78 |
1.13 |
1.10 |
1.15 |
1.39 |
1.05 |
|
ATPE 2.1 - 2-1/16" Panel |
0.54 |
1.01 |
1.16 |
1.11 |
1.19 |
1.59 |
1.10 |
|
ATPE 3.1 - 3-1/16" Panel |
0.94 |
1.00 |
1.14 |
1.21 |
1.20 |
1.47 |
1.15 |
|
ATPE 4.1 - 4-1/4" Panel |
1.04 |
1.11 |
1.16 |
1.20 |
1.19 |
1.59 |
1.15 |
