Overview

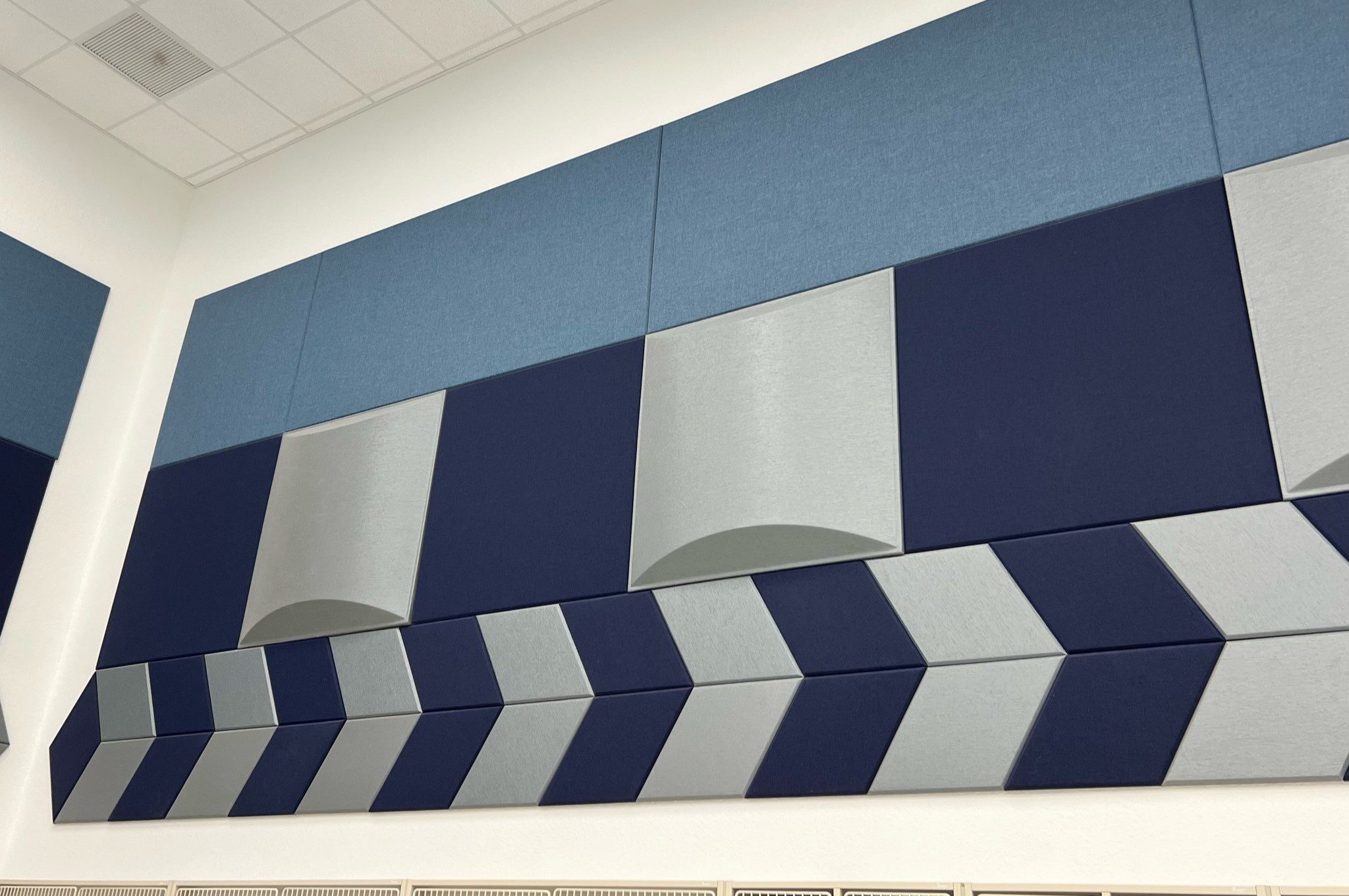

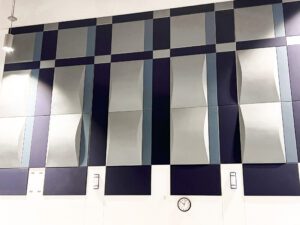

DiSorb™ Convex Diffuser-Absorbers are designed to achieve sound diffusion through their curved surfaces and absorb sound through innovative tuned componentry. Manufactured to the specification type required, these barrel diffusers provide a desirable wide-range diffusive scattering of returned acoustical sound energy and moderate absorption. DiSorb™ come in standard white or custom gel coat color with a lemon-peel texture, or they can be wrapped with a decorative fabric facing to complement your overall design and color palette. DiSorb™ Convex Diffuser-Absorbers are supplied in standard sizes and are ready for installation (with mounting hardware) to existing walls, ceilings or grid.
applications

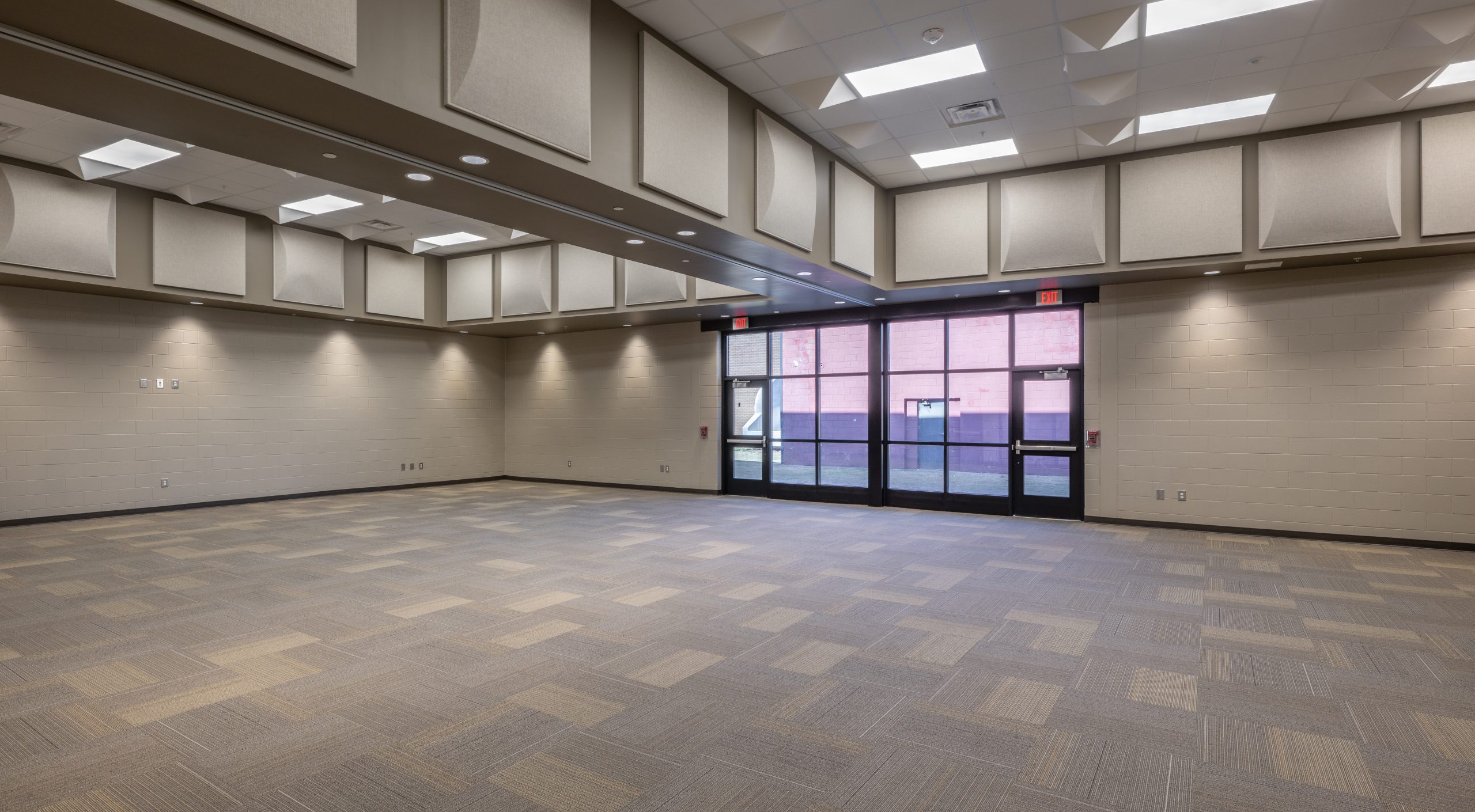

DiSorb™ Convex Diffuser-Absorbers are the ideal decorative wall & ceiling treatment for areas that require absorption and broadband diffusion to help scatter and blend the sounds in your space for the listening enjoyment of both music and speech. Some applications include:
- Band/Music Rooms
- Practice Rooms
- Schools/Classrooms
- Churches
- Studios
- Core: Molded FRP Polymer Shell
- Depth: Varies Based on Size and Type
- Sizes (Nominal): 1’x2’, 2’x2’, 2’x4’, 2’x6’, 2’6”x4’, 3’x3’, 3’x4’, 3’x6’, 3’x8’, 3’6”x3’6”, 4’x4’, 4’x5’, 4’x6’, 4’x8’, 4’x10′
- Custom Sizes: Available Upon Request up to 4’x10′
- Finish: Standard White, Custom Color Gel Coat, Optional Fabric Facings
- Standard: Guilford FR701-2100 Series
- Premium: Guilford Anchorage 2335
- Texture: Standard Lemon-Peel
- Fasteners: L-Clips, Ceiling Lay-In, Z-Clip, Z-Bar
- Dimensional Tolerance: +/- ¼” (.25″)
- Fire Performance: Class 1/A, UL 723 / ASTM E84
- Convex-Shaped Diffuser-Absorber
- Lightweight Systems for Ceiling & Wall Installations
- Durable and Resistant to Damage
- Standard White with Lemon-Peel Texture
- Custom Gel Coat Colors Available
- Wide Selection of Standard Colors, Prints, Textures & Finishes
- Decorative Fabric Facings from Guilford of Maine as well as Designer Selections from Maharam, Carnegie, DesignTex, Knoll, & More!
- Standard and Custom Sizes Available
- Easy to Install as Ceiling Lay-In or with Fully-Concealed Mounting Hardware Included
- Provides Desirable Wide-Range Diffusing Scattering of Returned Acoustical Sound Energy and Moderate Sound Absorption
Acoustical Data
| Frequency (Hz) | 125 | 250 | 500 | 1K | 2K | 4K | NRC |
|---|---|---|---|---|---|---|---|
|
DiSorb™ Type A (Wall Mount FG Backed w Z-Clips OR Wall Mount FG Infill w L-Clips) |
0.62 |
0.51 |
0.32 |
0.25 |
0.19 |
0.23 |
0.30 |
|
DiSorb™ Type U (Wall Mount Unbacked w L-Clips) |
0.24 |
0.18 |
0.10 |
0.07 |
0.06 |
0.04 |
0.10 |
|
DiSorb™ Type W (Ceiling Lay-In) |
0.18 |
0.20 |
0.12 |
0.07 |
0.07 |
0.05 |
0.10 |
