Overview
AcousTech™ High Impact panels are abuse-resistant, decorative, high-performance and highly customizable panels that are designed for both wall and ceiling applications. AcousTech™ High Impact panels are constructed from 6-7 PCF fiberglass board with a 1/8″ thick, 16-20 PCF high density fiberglass facing that is then wrapped with a decorative fabric facing to complement your overall design and color palette.
Applications
AcousTech™ High Impact Panels are the ideal decorative wall & ceiling treatment for areas that require sound & noise control. Some applications include:

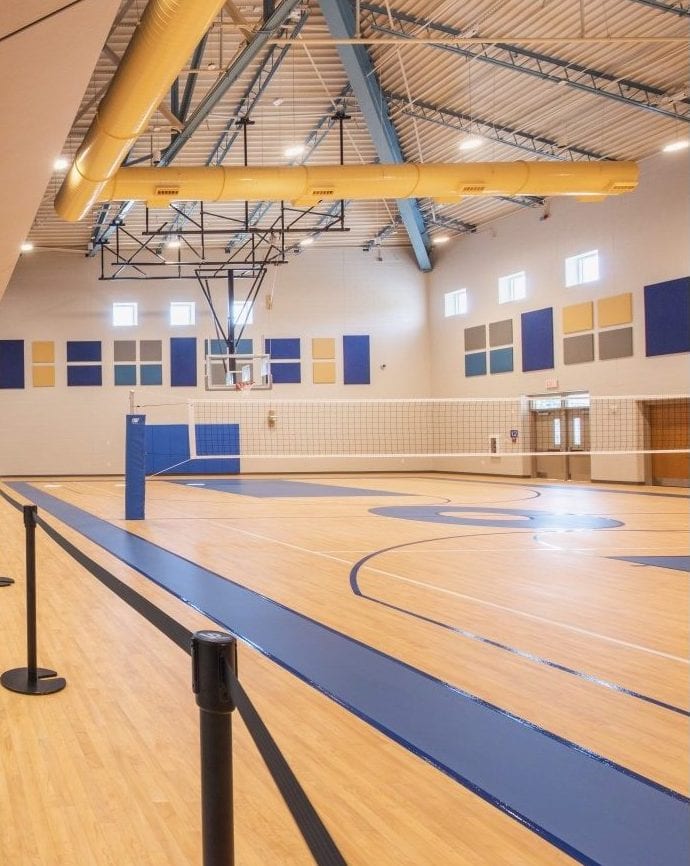

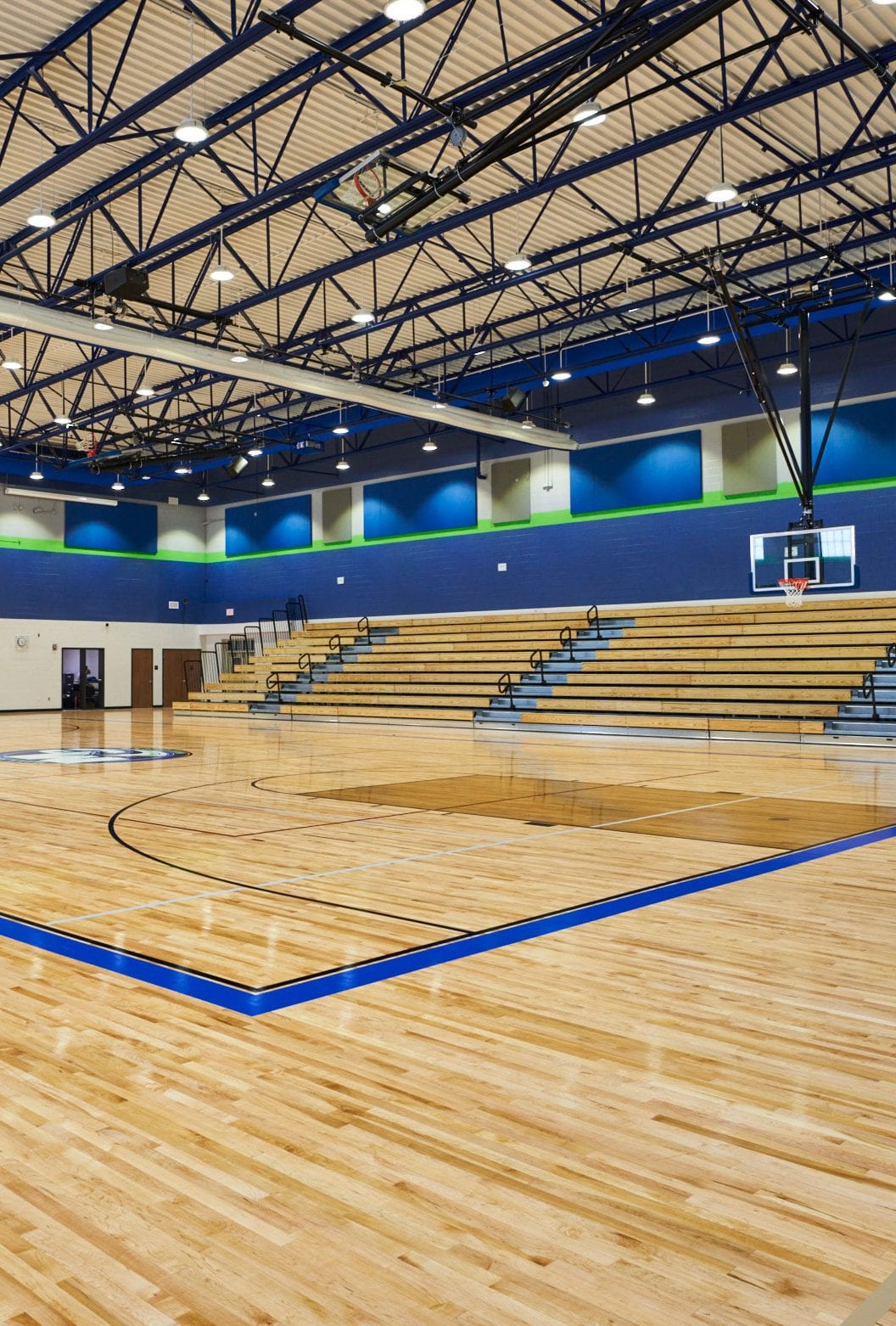

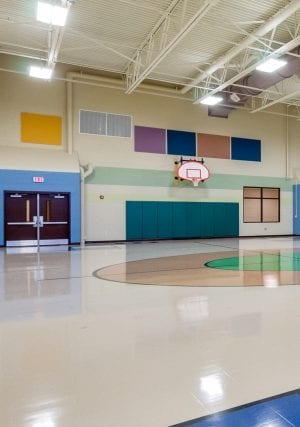

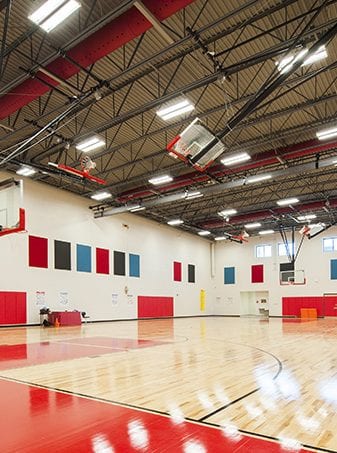

Gymnasiums • Rec Centers • Schools/Classrooms • Conference Areas • Church Youth Areas • Lobbies • Hallways • Healthcare
Key Features
- Tackable Face that is Abuse Resistant and Extremely Durable
- Dual-Density Core Engineered for Exceptional Low Frequency Absorption and Added Benefit of High Impact Resistance
- Design Flexibility with Standard and Custom Sizes & Shapes Available
- Highest Sound Absorption Efficiency & Performance
- Lightweight Systems for Ceiling & Wall Installations
- Wide Selection of Standard Colors, Prints, Textures & Finishes
- Decorative Fabric Facings from Guilford of Maine as well as Designer Selections from Maharam, Carnegie, DesignTex, Knoll, & More!
- AcousTech™ Felt & Guilford Felt Fabrics Available

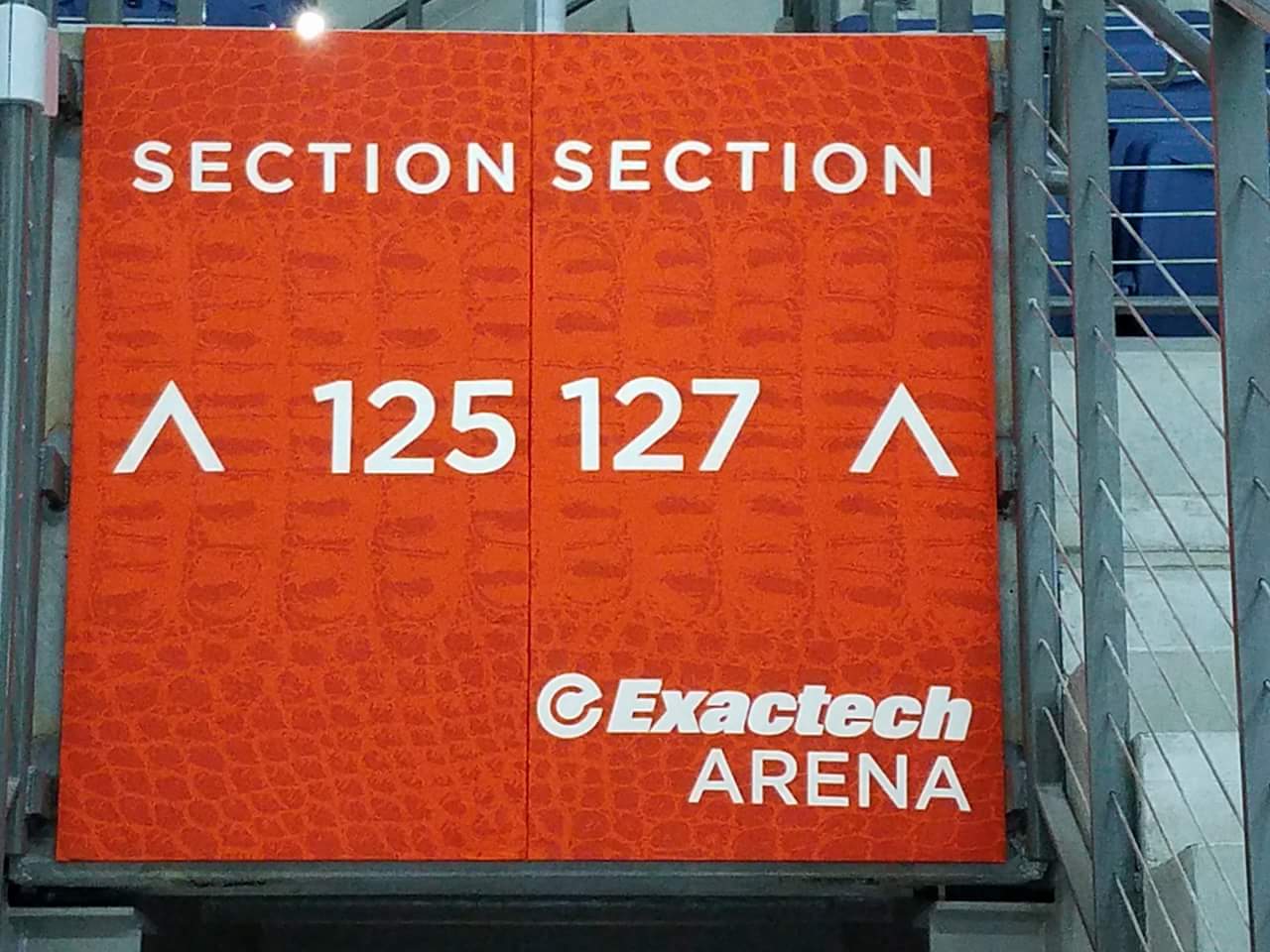

- Custom-Printed Digital Imaging Available
- Easy to Install with Fully-Concealed Mounting Hardware Included
- LEED Credit Eligibility With Installation of These Products
- Indoor Air Quality (IAQ) & Low VOC Meets GREENGUARD Children & Schools Certification and California Title 24
- Low VOC emissions per CDPH Standard Method
Technical Features
- Core: 6-7 PCF Fiberglass
- Core Facing: ⅛” 16-20 PCF High Density Fiberglass
- Thickness: ⅝”, ⅞”, 1⅛”, 1⅝”, 2⅛”, 3⅛”, 4⅛”
- Sizes: Any Size Up to 48” x 120”
- Special Sizes & Shapes: Available Upon Request
- Edge Profile: Square, Bevel, Radius, Miter, Others Available Upon Request
- Fabric: Decorative Fabric Facings, Designer Selection or C.O.M.
- Standard: Guilford FR701-2100 Series
- Premium: Guilford Anchorage 2335
- Felt: AcousTech™ Felt or Guilford Felt 9900
- Fasteners: Z-Clip, Z-Bar, Impaling, Hook & Loop
- Dimensional Tolerance: +/- 1/16” (.0625”)
- Fire Performance: Class 1/A, UL 723 / ASTM E84
Acoustical Data
Acoustical Performance - Absorption Coefficients
| Frequency (Hz) | 125 | 250 | 500 | 1K | 2K | 4K | NRC | |
| ATP 1.1 | 1⅛" Panel | 0.19 | 0.54 | 0.97 | 1.10 | 1.13 | 1.42 | 0.95 |
| ATP 1.6 | 1⅝" Panel | 0.36 | 0.78 | 1.13 | 1.10 | 1.15 | 1.39 | 1.05 |
| ATP 2.1 | 2⅛" Panel | 0.54 | 1.01 | 1.16 | 1.11 | 1.19 | 1.59 | 1.10 |
| ATP 3.1 | 3⅛" Panel | 0.94 | 1.00 | 1.14 | 1.21 | 1.20 | 1.47 | 1.15 |
| ATP 4.1 | 4⅛" Panel | 1.04 | 1.11 | 1.16 | 1.20 | 1.19 | 1.59 | 1.15 |
